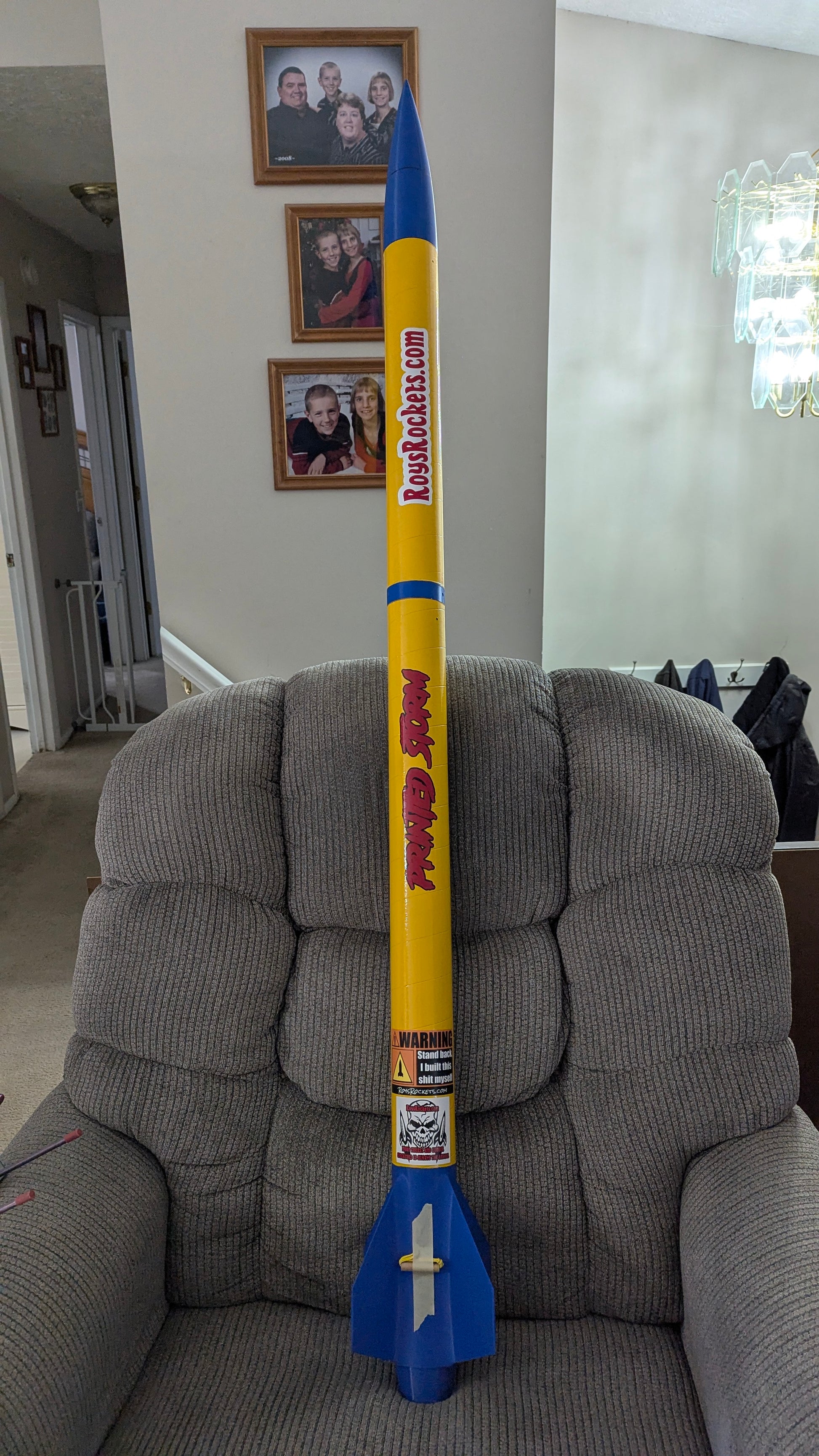

Printed Storm 3" Rocket Kit

Printed Storm 3" Rocket Kit

$180.00 USD
$180.00 USD
Sale Sold out

RoysRockets proudly presents a 3D printed, Mach-capable, rocket kit ready for enthusiasts. Developed over time, this kit features durable PETG material suitable for high-power rocketry and includes Blue Tube body tubes for enhanced performance.

This kit is easy to assemble with simple epoxy and the simplicity of working with Blue Tube, and can be flight-ready in just a few hours. The fin can has three parts that you epoxy together, the nose cone has two parts, and once you add your own electronics and sled, you're ready to fly. BlueTube Facts and Sealing

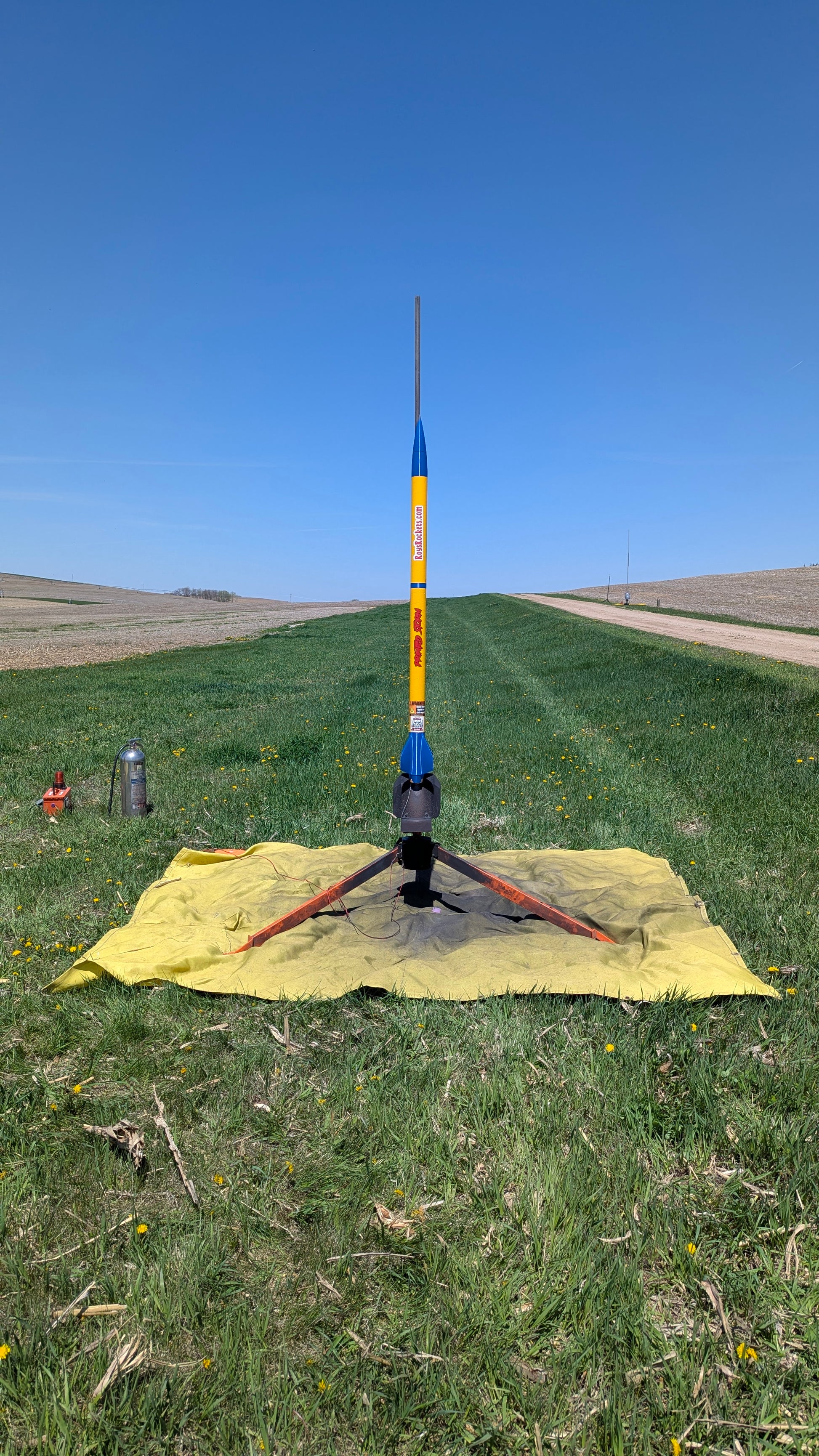

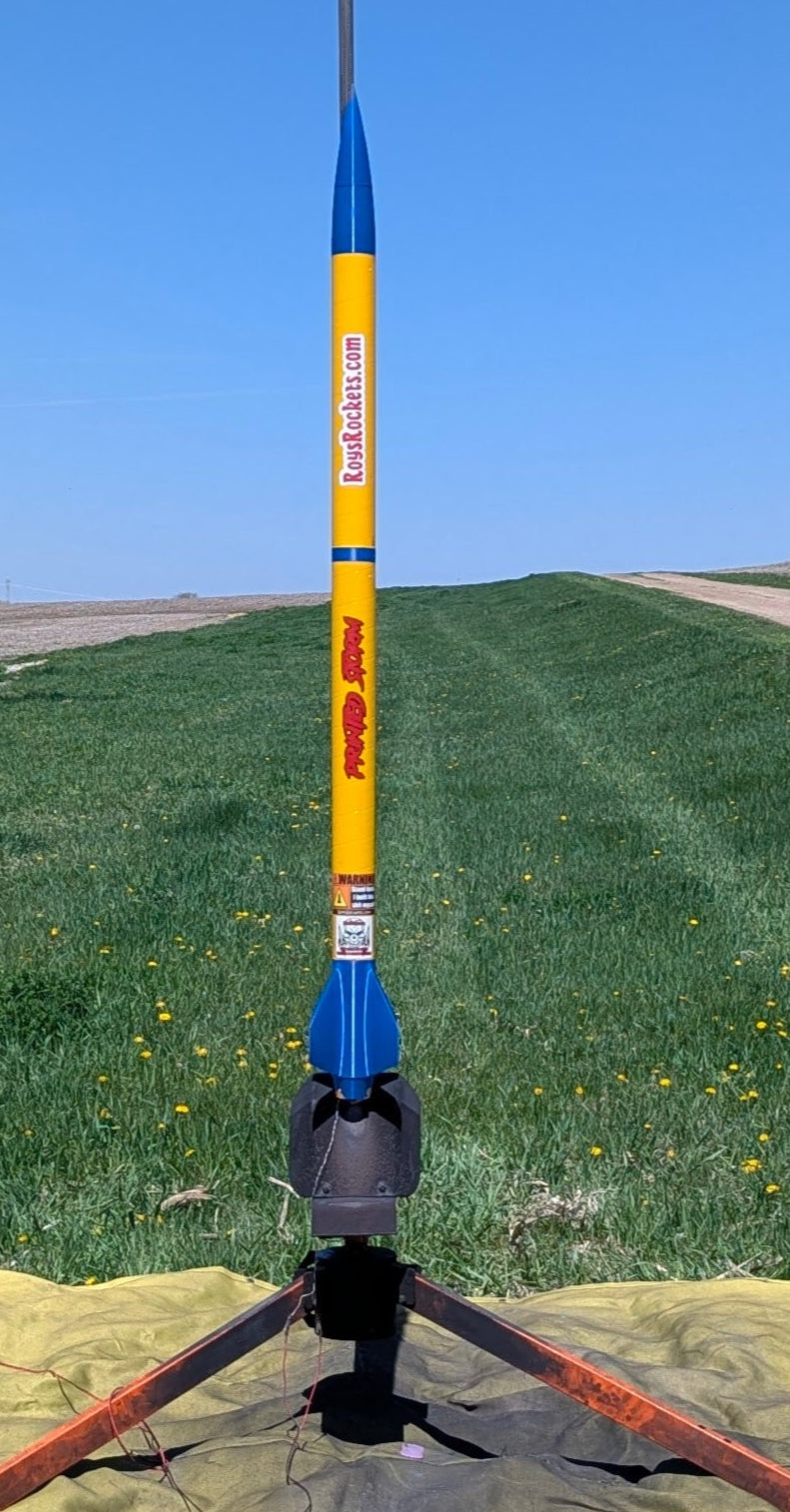

This kit has successfully flown on an L1000 with (it's recommended to use the stubby retainer). The flight went over 10'000' with a max speed of Mach 1.3.

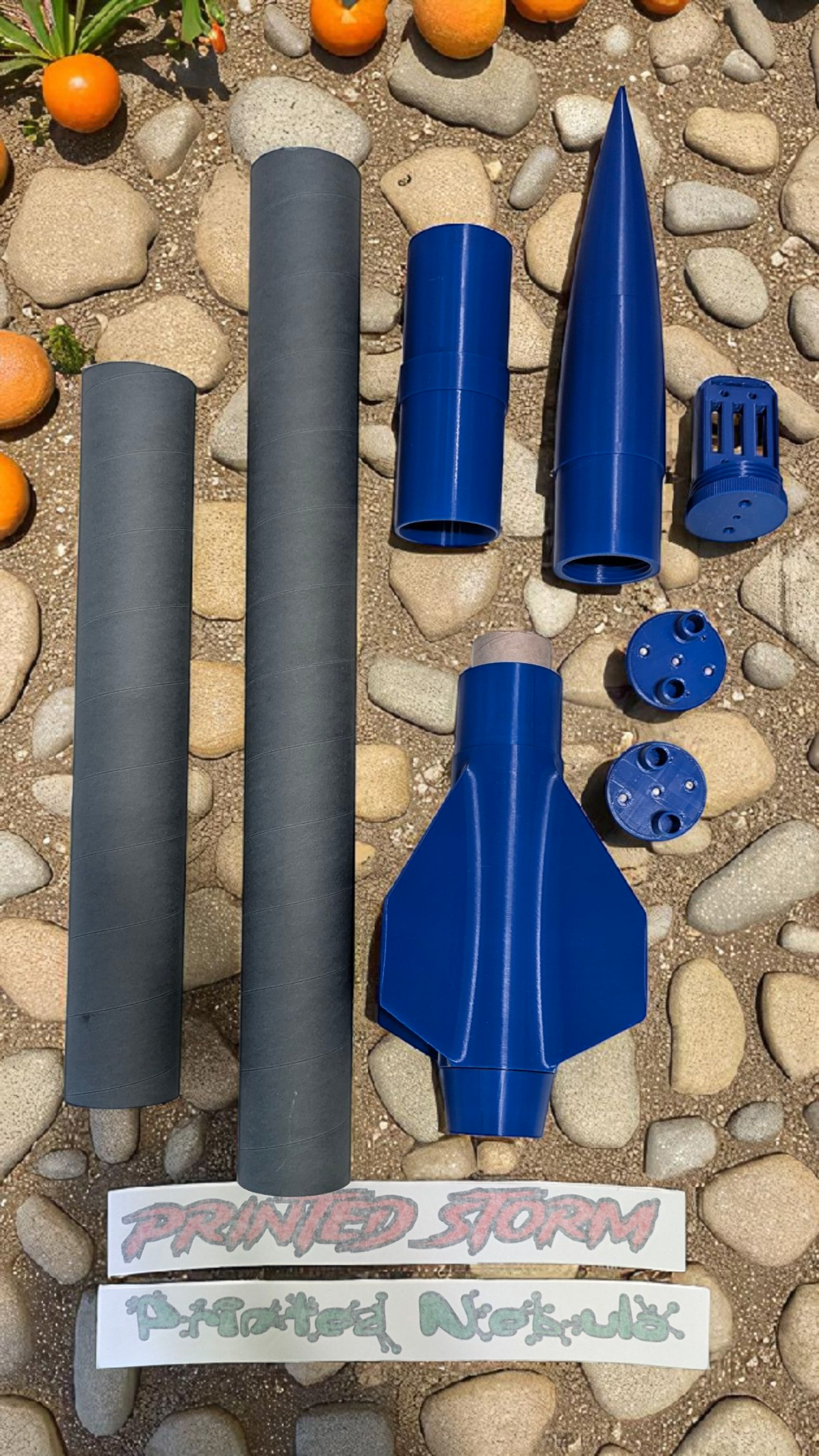

Kit includes:

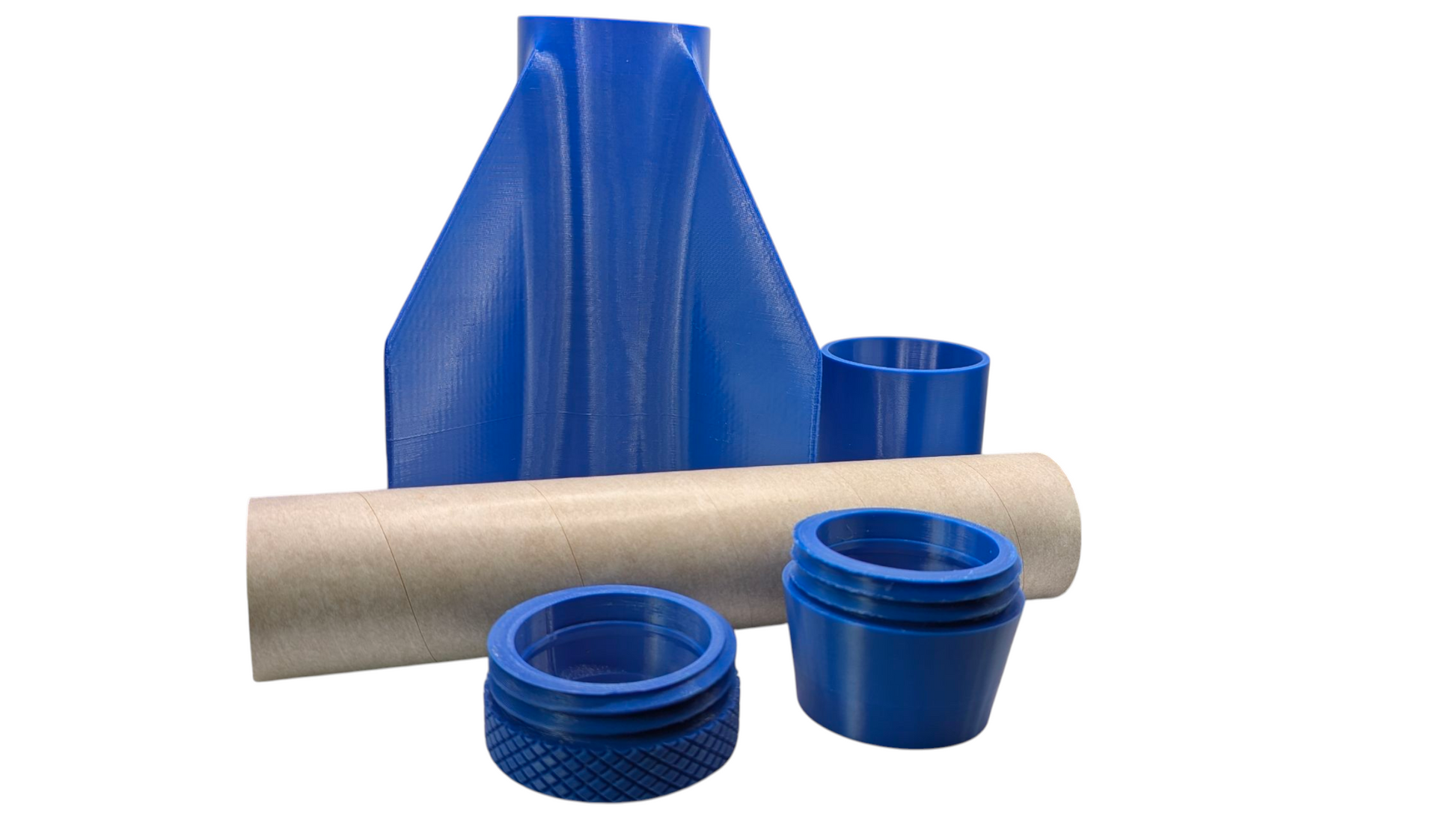

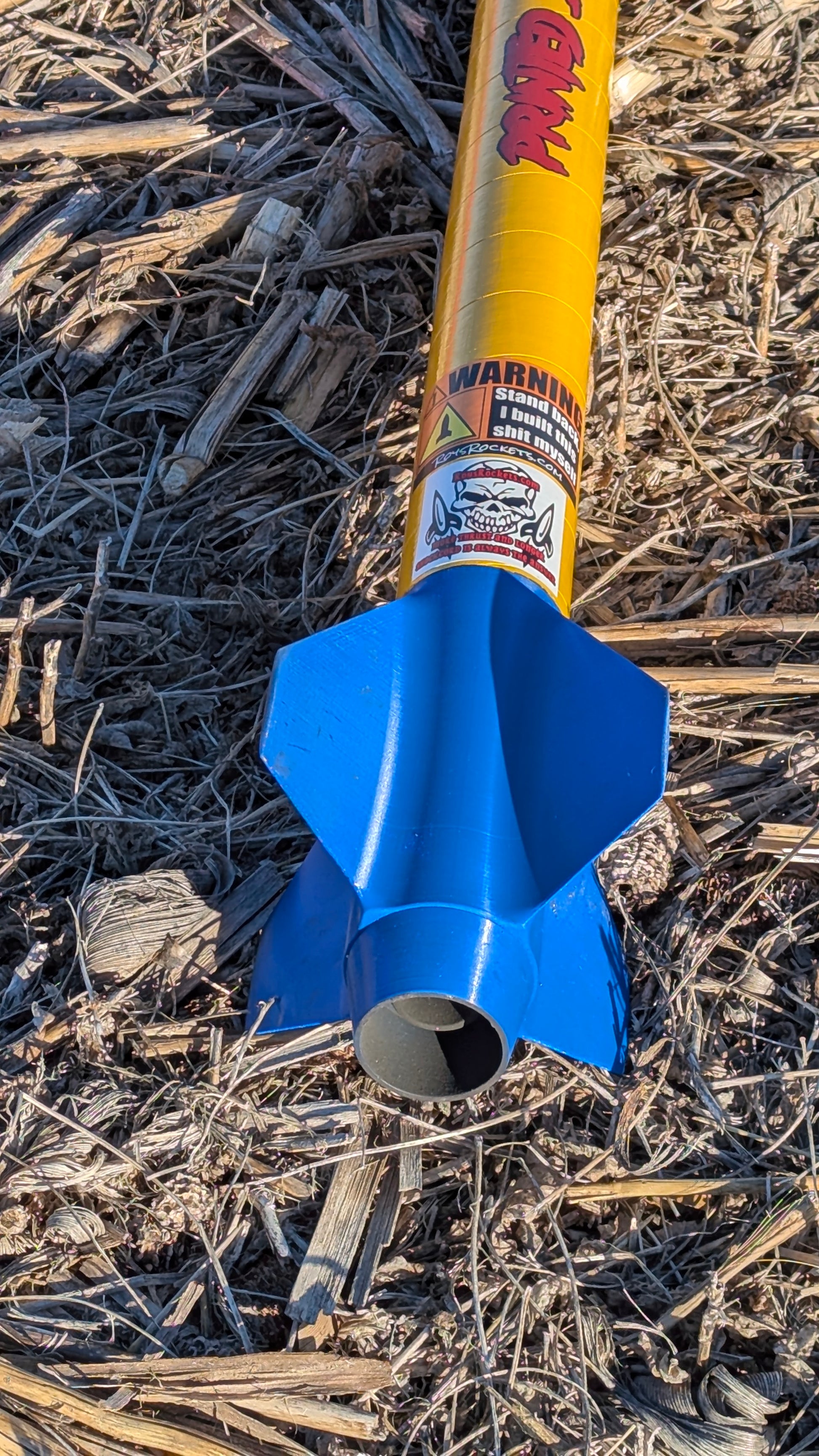

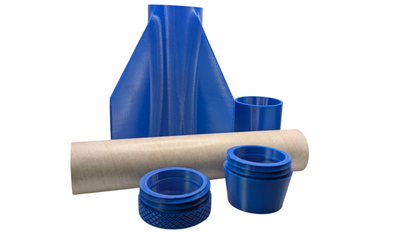

  • Printed Fin Can
  • 54mm Loc Motor Tube

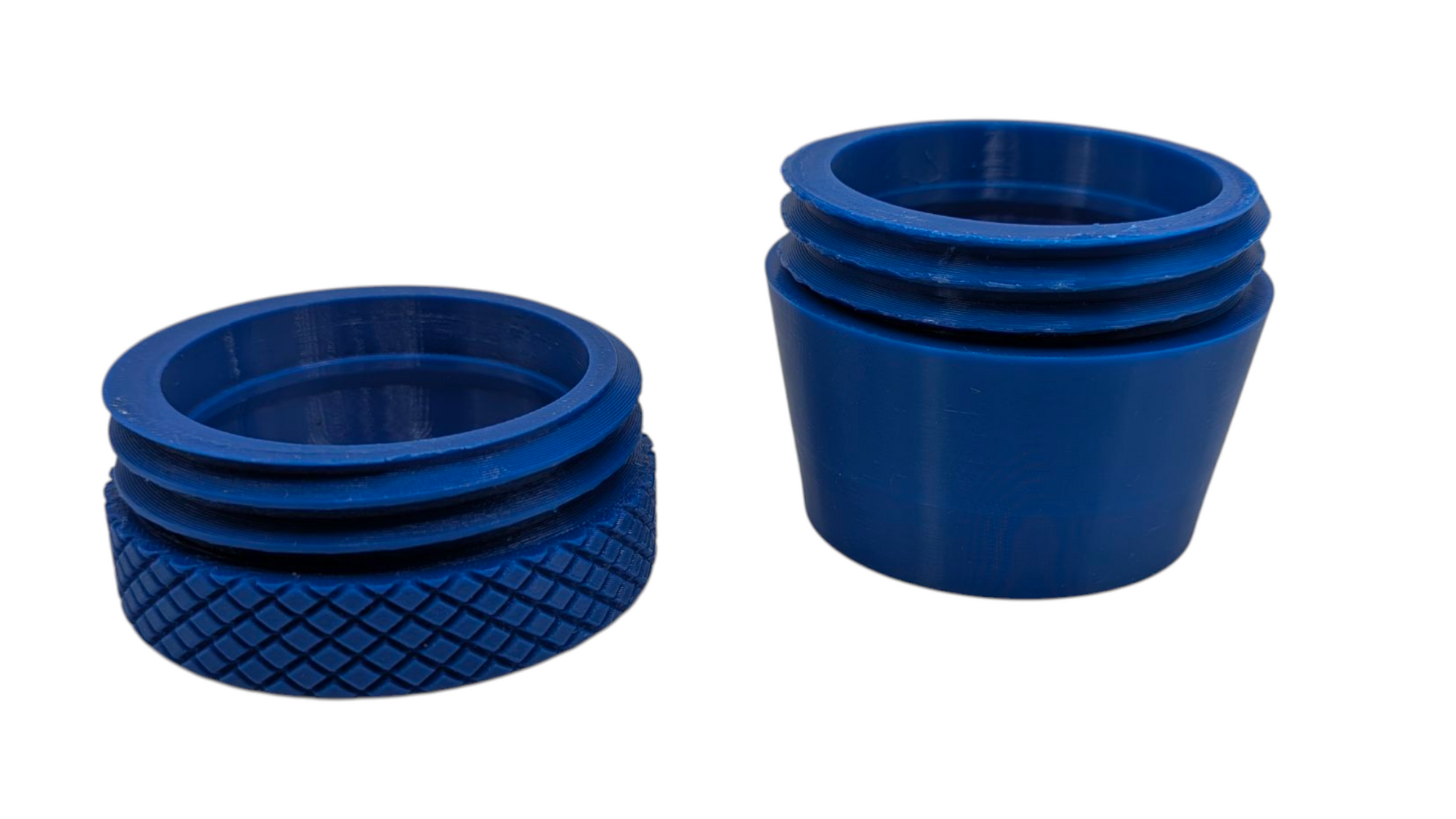

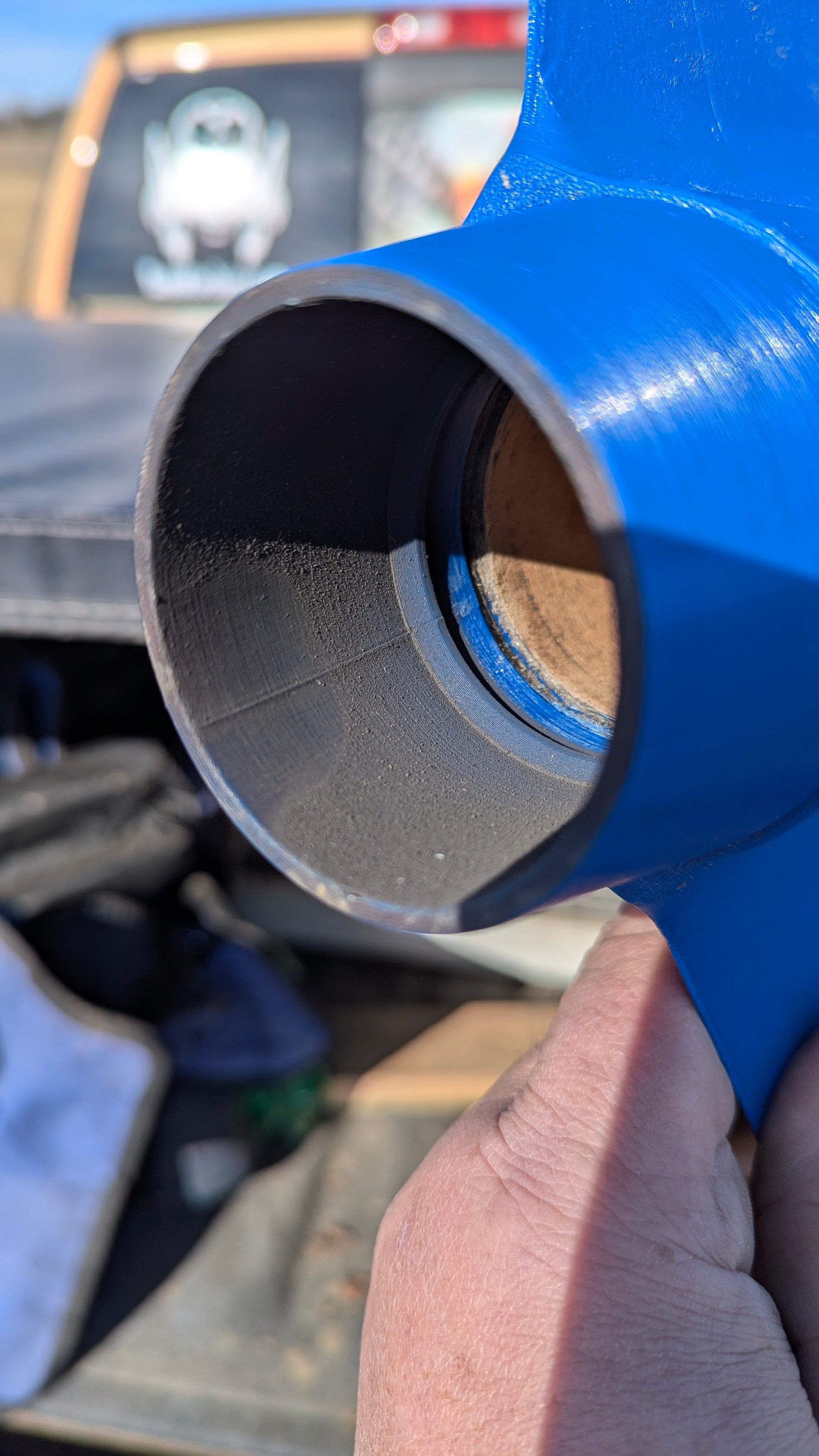

  • Two retainers (tail cone and stubby)
  • Fin Can Shoulder
  • Av bay with switch band

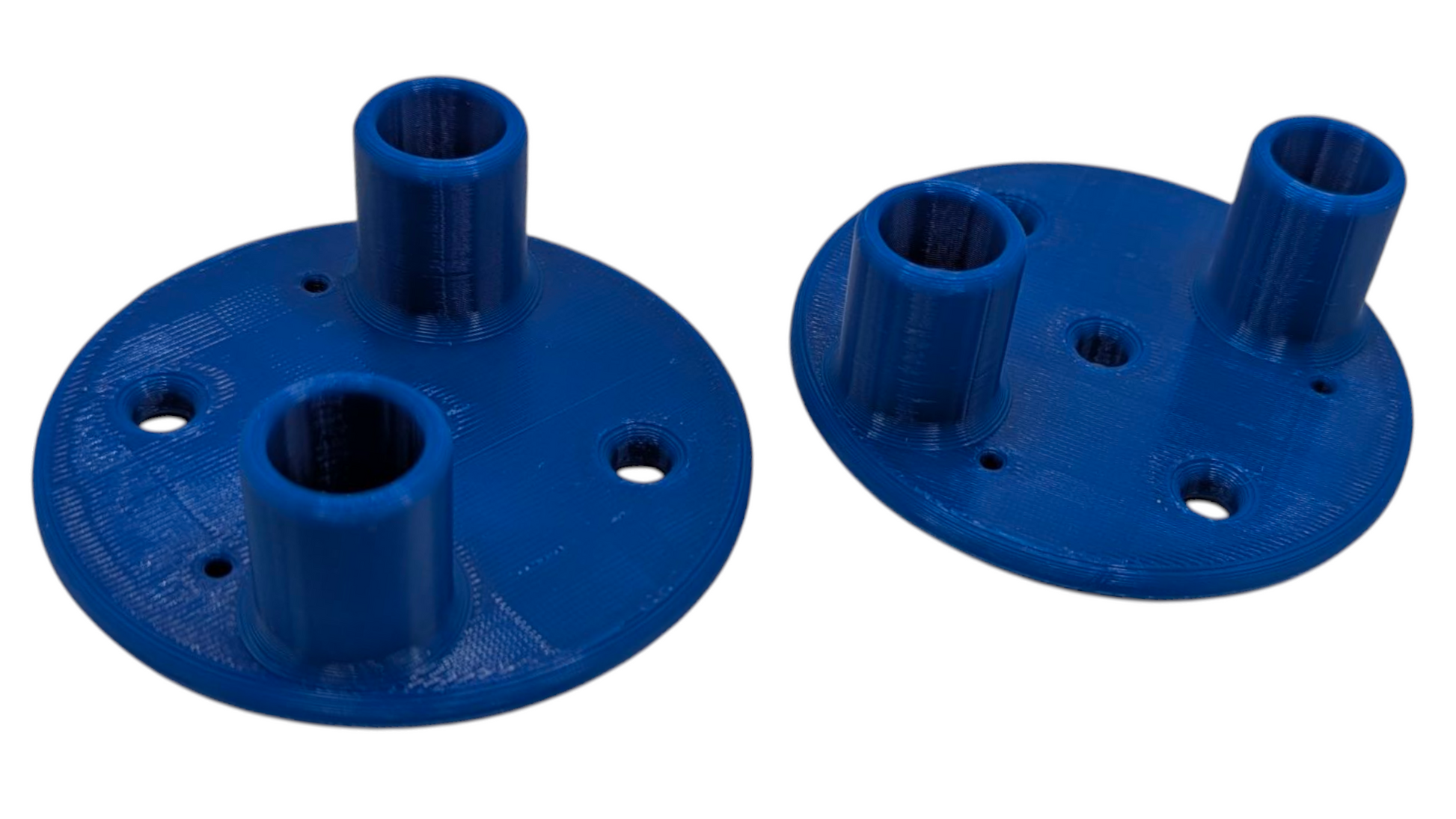

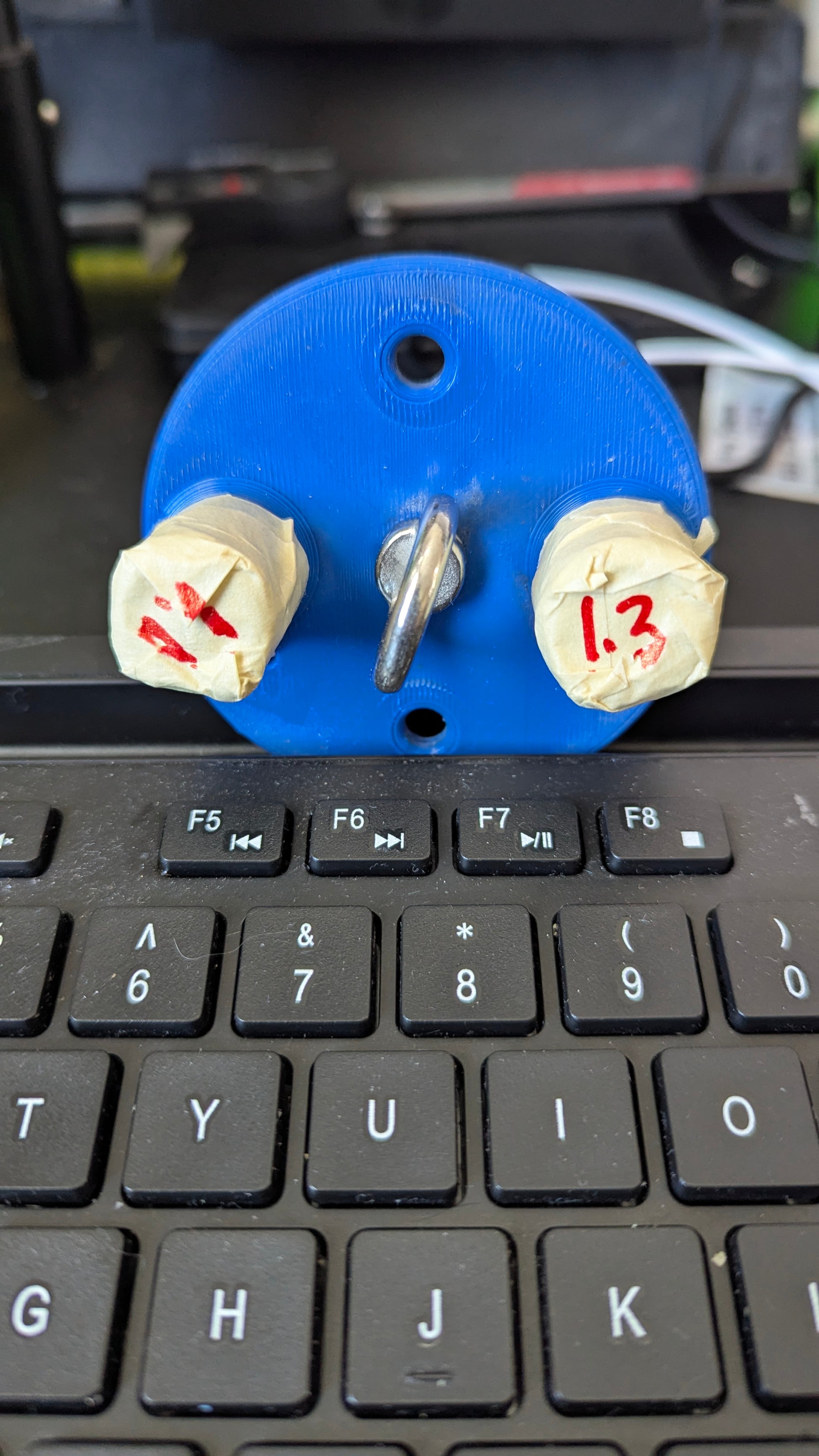

  • Bulkheads with integrated charge wells (2 Gram)
  • 28" and 20" Blue Tube body tubes

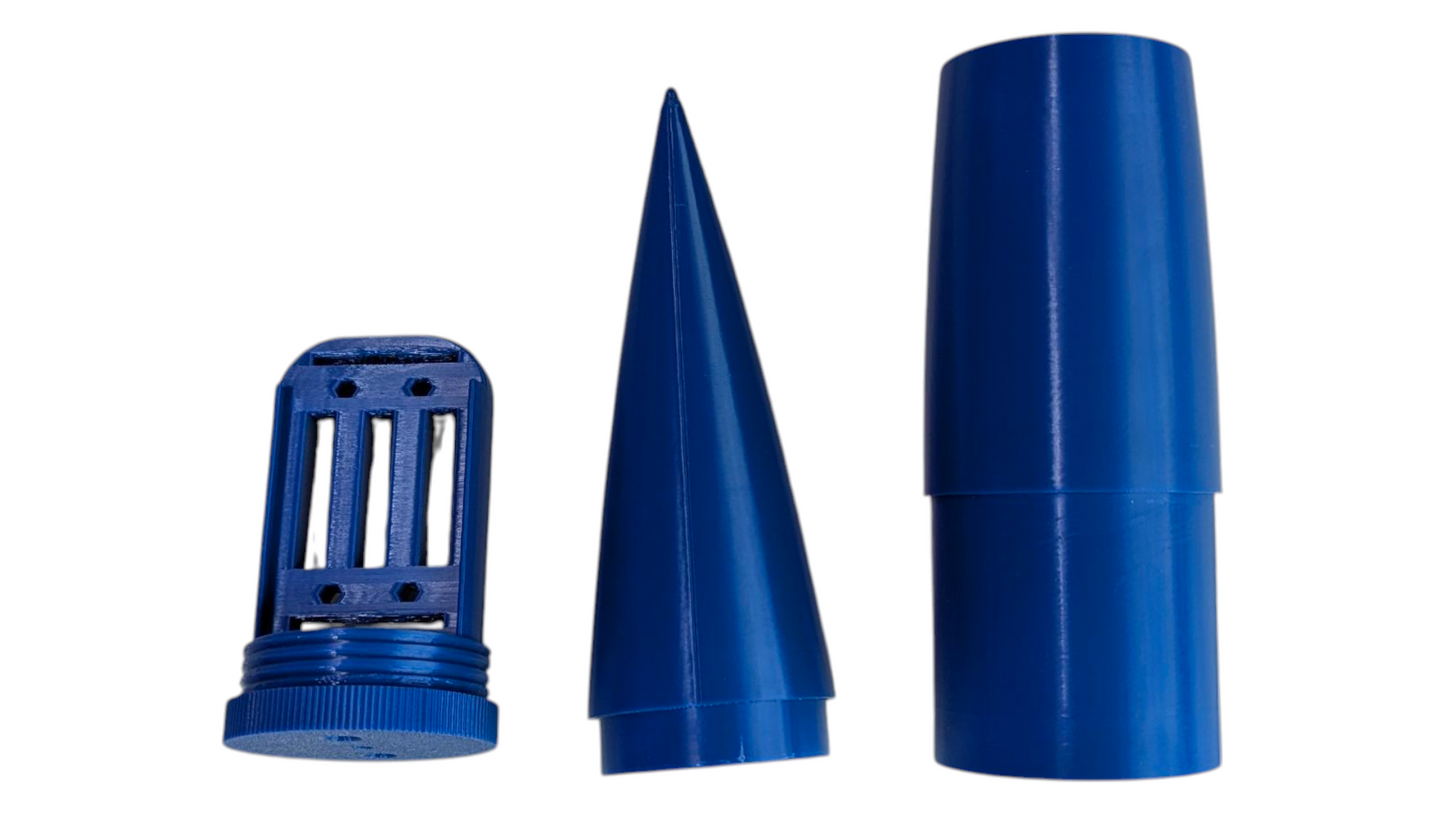

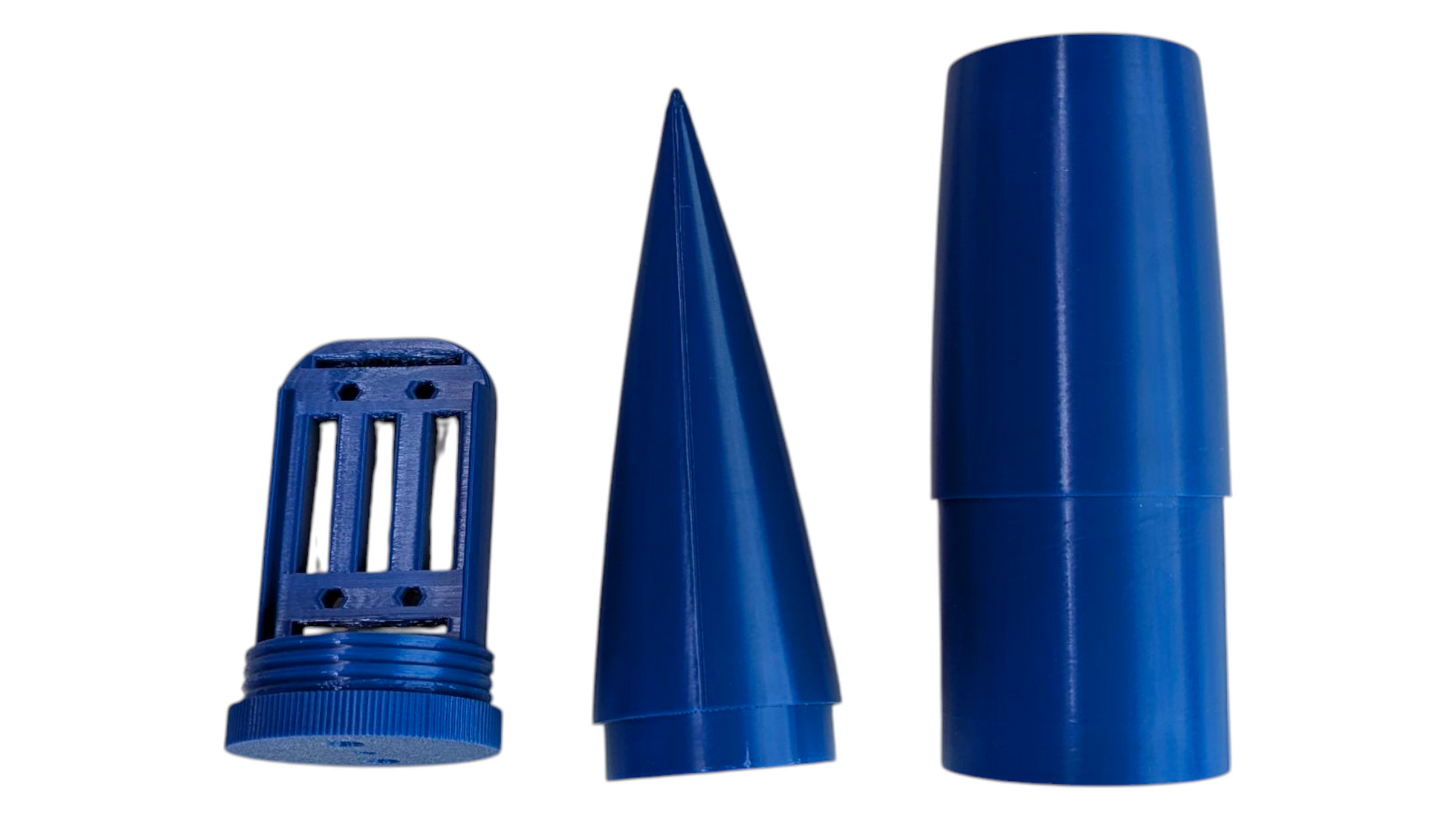

  • Nose cone with threaded bay closure/sled

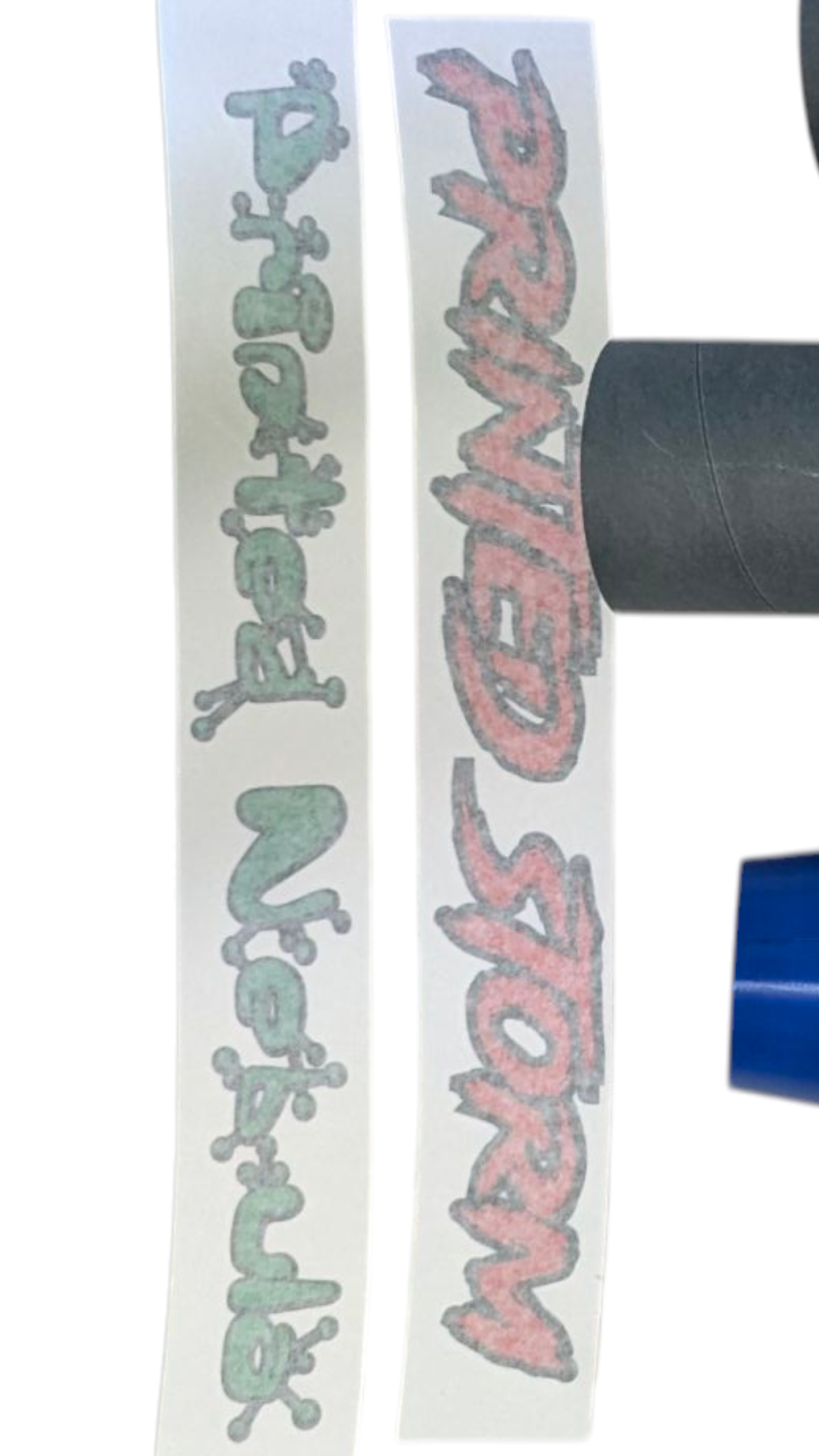

  • StickerShock23 Decal of both "Printed Storm" and "Printed Nebula"
  • Hardware pack that includes stainless hardware (all thread, eyenuts, bolts, nuts, washers)
  • Oil-based sanding sealer to be applied after assembly.

Shipping is set to a flat $45.  IF SHIPPING COMES IN UNDER THIS, I WILL REFUND YOU BACK TO THE ACTUAL COSTS.  Shipping large box kits is challenging to determine correctly.

Kit weight is 1925 Grams, overall length is 71"

Assembley Instructions and Tips Here

Rocksim File Here

**Credit to David Frey, aka @frogglicker, for the CAD work on this project.  You can find him on YouTube or Printables.com


Blue Tube 2.0 Is:

  1. More abrasion-resistant than anything in its price class.
  2. Able to create a stronger bond to other component materials, due to Blue Tube 2.0’s superior adhesive absorption.
  3. More forgiving and impact resistant than anything in its price class.
  4. Mach capable out of the box.
  5. Radially stronger than anything in its price class.
  6. Nearly as strong as fully cured hard brittle phenolic without the problems.
  7. 36% lighter than fiberglass.
  8. Made from earth-friendly materials.

  9. If you plan on using any telemetry in your project, Blue Tube 2.0 is also Radiolucent (Transparent to radio waves).
