Eronotix Rocket Alti

Eronotix Rocket Alti

Regular price $49.00 USD
Regular price Sale price $49.00 USD
Sale Sold out

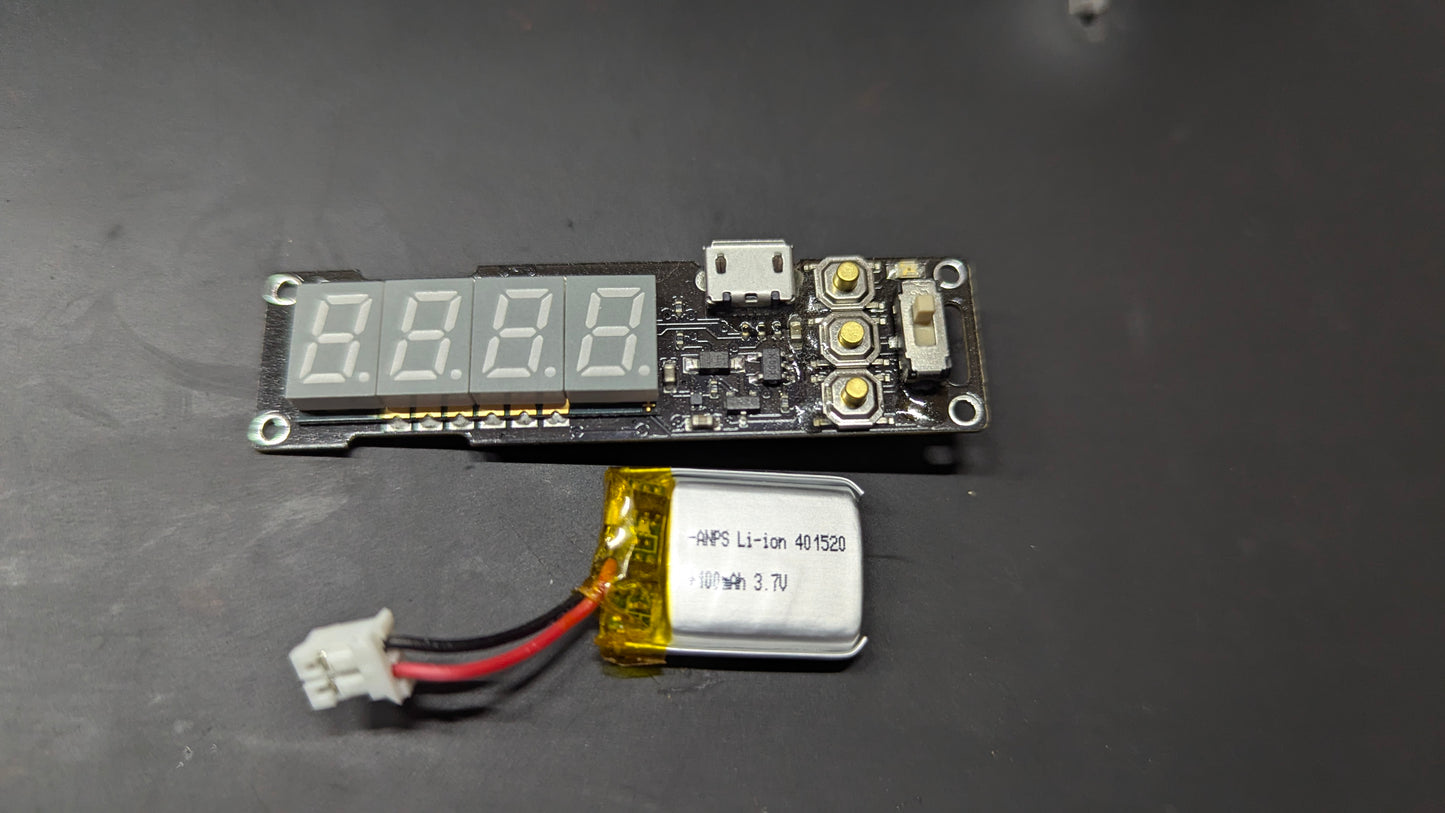

Discover the maximum altitude of your model rocket with ease, using Rocket Alti. This data logging device accurately records altitude and temperature data at a rate of 32 samples per second, which can be conveniently accessed online through Eronotix Logbook. With the ability to store data from up to 16 flights, you won't need to transfer or erase information frequently. Plus, the user-friendly design features a seven-segment display for on-site monitoring and quick data retrieval. Its slim and lightweight profile allows it to easily fit into a BT-20 rocket tube, and it can run for hours on a single USB charge.

Key Features

  • Logs up to 8 minutes of altitude and temperature data
  • High sample rate of 32 samples per second
  • Thin and lightweight design can fit in a BT-20 rocket tube
  • Designed for ease of use
  • Built-in seven-segment display for instant readouts in the field
  • Displays apogee (highest altitude reached), ascent and descent time
  • Logs with full accuracy as high as 30,000 feet
  • View graphs with Eronotix Logbook
  • Download raw data
  • Various mounting options
  • Lightweight battery rechargeable via USB in 20 minutes
  • Hours of battery life on one charge
  • Easy firmware updates via USB

Technical Specifications

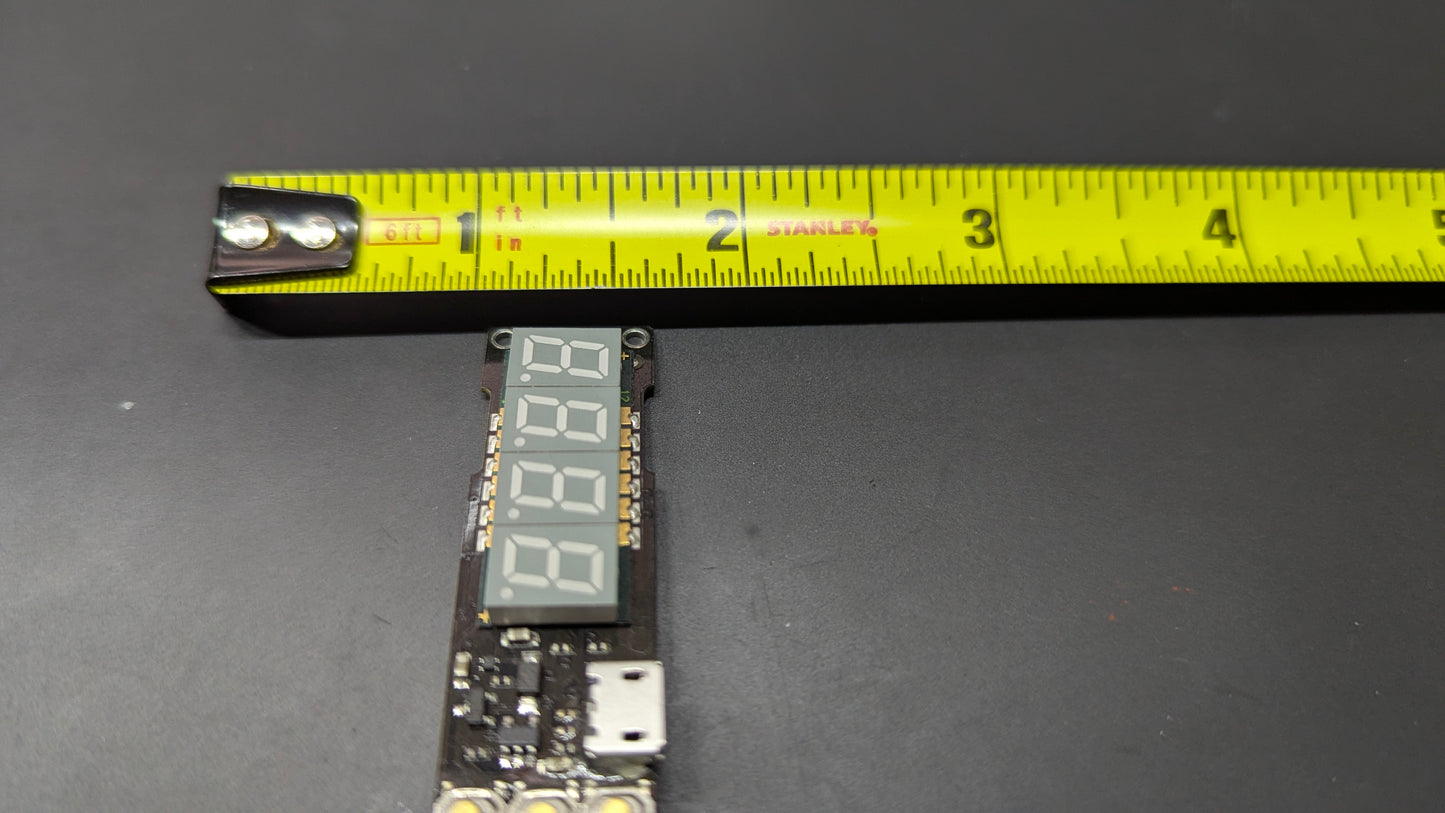

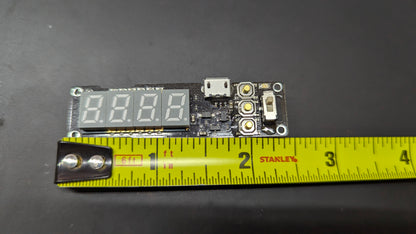

  • Dimensions: 60.0 × 16.9 × 12.1 mm (2.36 × 0.67 × 0.48 in)
  • Weight with battery: 7.2 g (0.25 oz)
  • Battery: rechargeable lithium polymer 3.7 V 100 mAh
  • Operating temperature range: −40° to +65° C (−40° to 150° F)
  • Operating altitude: −500 to 9,000 m MSL (−1,640 to 29,528 ft)
  • Altitude relative accuracy: 0.75 m (2.46 ft)
  • Sample rate: 32 Hz
  • Charging temperature range: 0° to +50° C (32° to 122° F)
  • Display type: green four-digit seven-segment, common cathode
  • USB connector: Micro USB 2.0 Type B
  • Data logged: altitude and temperature
  • Data capacity: 16 flights, 8 minutes 32 seconds in length
